870PSI Nitrogen Purging Kit

870PSI Nitrogen Purging Kit

Q: What nitrogen flow rate should I use when purging and brazing?

For purging, AWS D10.13/D10.13M recommends a flow rate of 25 CFH (12 LPM), with the purging duration depending on the pipe or tube length and size. When brazing tubes under 3″ in size, the manual recommends reducing the nitrogen flow to approximately 5 CFH (2.4 LPM)

Q: Why should I purge with nitrogen before brazing?

Purging with nitrogen displaces oxygen and other vapor contaminants inside the line, helping minimize the formation of oxides during brazing. Oxide flakes can become dislodged after commissioning and circulate through the HVAC/R system, potentially contributing to premature compressor failure.

Q: Can I use the 870 PSI Nitrogen Purging Kit with a refillable nitrogen cylinder?

Yes. In addition to the Ambro Controls disposable nitrogen cylinder, the 870 PSI Nitrogen Purging Kit can be connected to a standard refillable nitrogen cylinder with a CGA580 connection using the included M10x1 to CGA580 adapter.

Test and purge refrigeration and air conditioning systems easily with our Nitrogen Purging Kit. Pressure check HVAC and Refrigeration lines, and purge pipes prior to brazing to protect the joints from oxidation. This kit can also be used to flush condensate drain lines. The compact size is suitable for use in hard to reach areas or where space is limited.

Available in 3 pressure variants, these nitrogen purging kits include UL Approved regulators, with easy-to-read contents and flow gauges that have been precision engineered for trade use.

Application: Engineered for HVAC technicians for purging & testing of HVAC/Refrigeration systems and flushing drain lines.
MAP (Minimum Advertised Price): $236.00

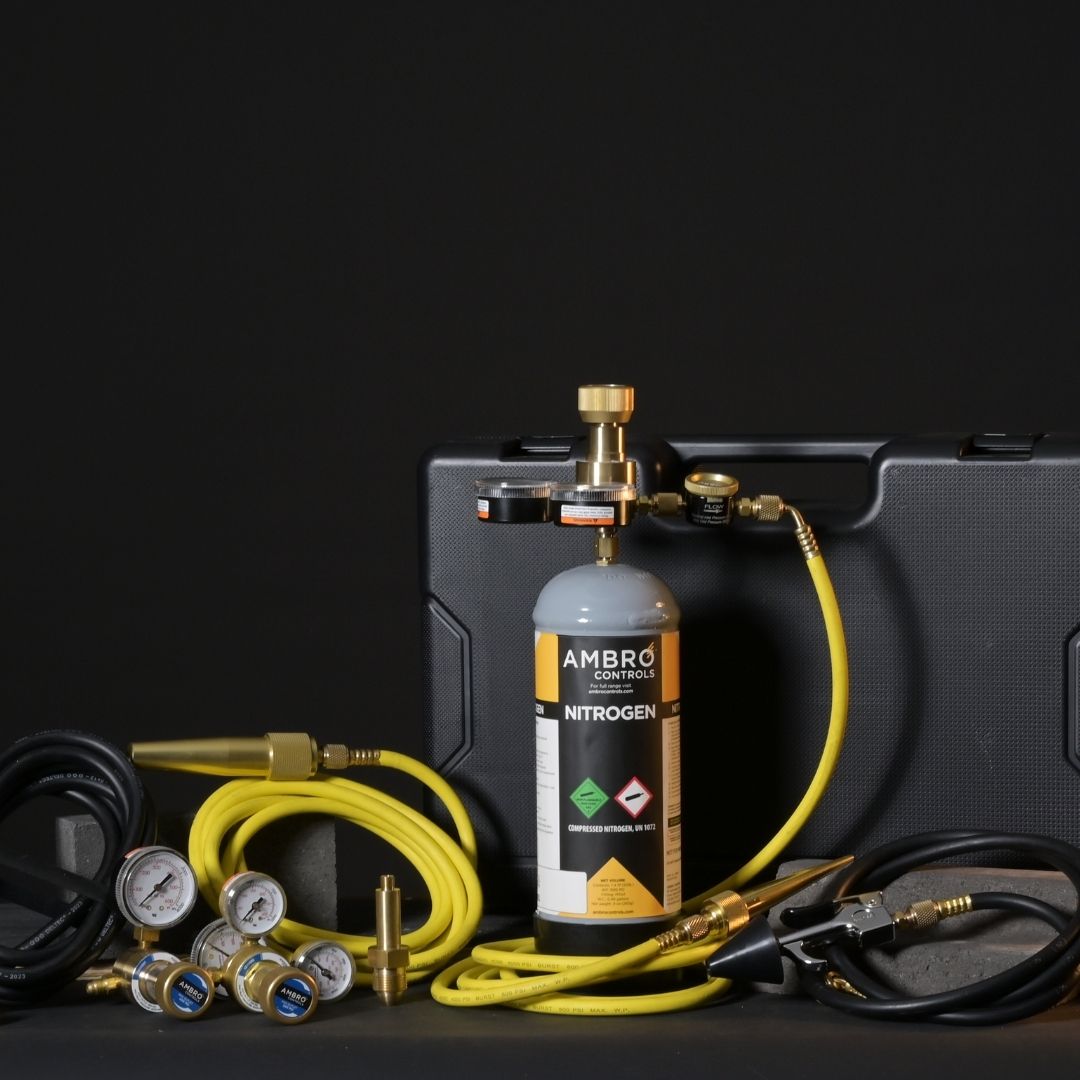

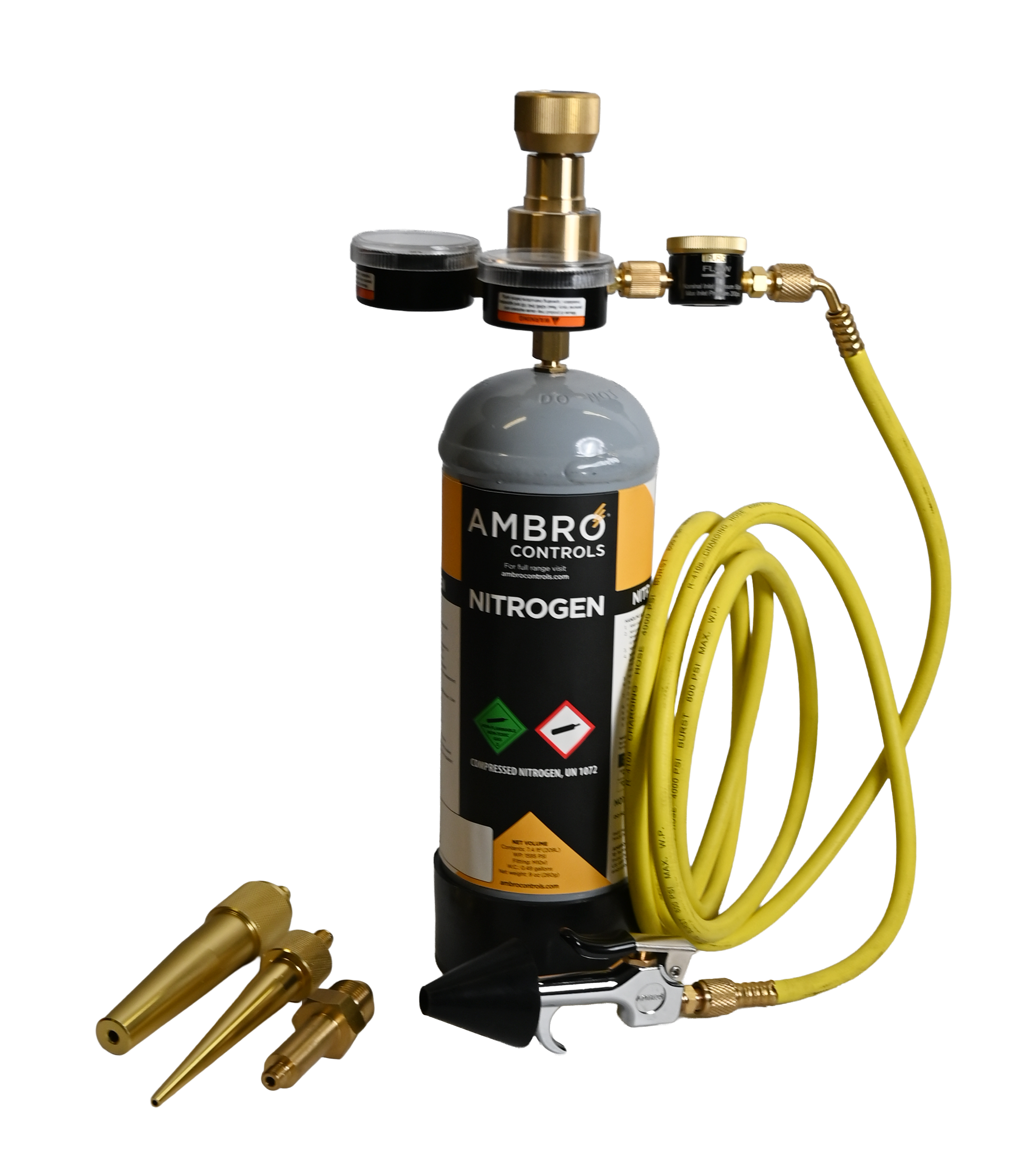

*Nitrogen Cylinder shown for display purposes. Not included with kit.

SKU	1811555
Application	Purging and testing of refrigeration and air conditioning systems. Flushing condensate drain lines.
Delivery Range	0-870 PSI
Max. Inlet Pressure	3000 PSI
Hose Connection	¼” SAE Fittings
Hose length	9.84ft (3m)
Compatible Pipe Diameter	3/8” to 1 1/8”

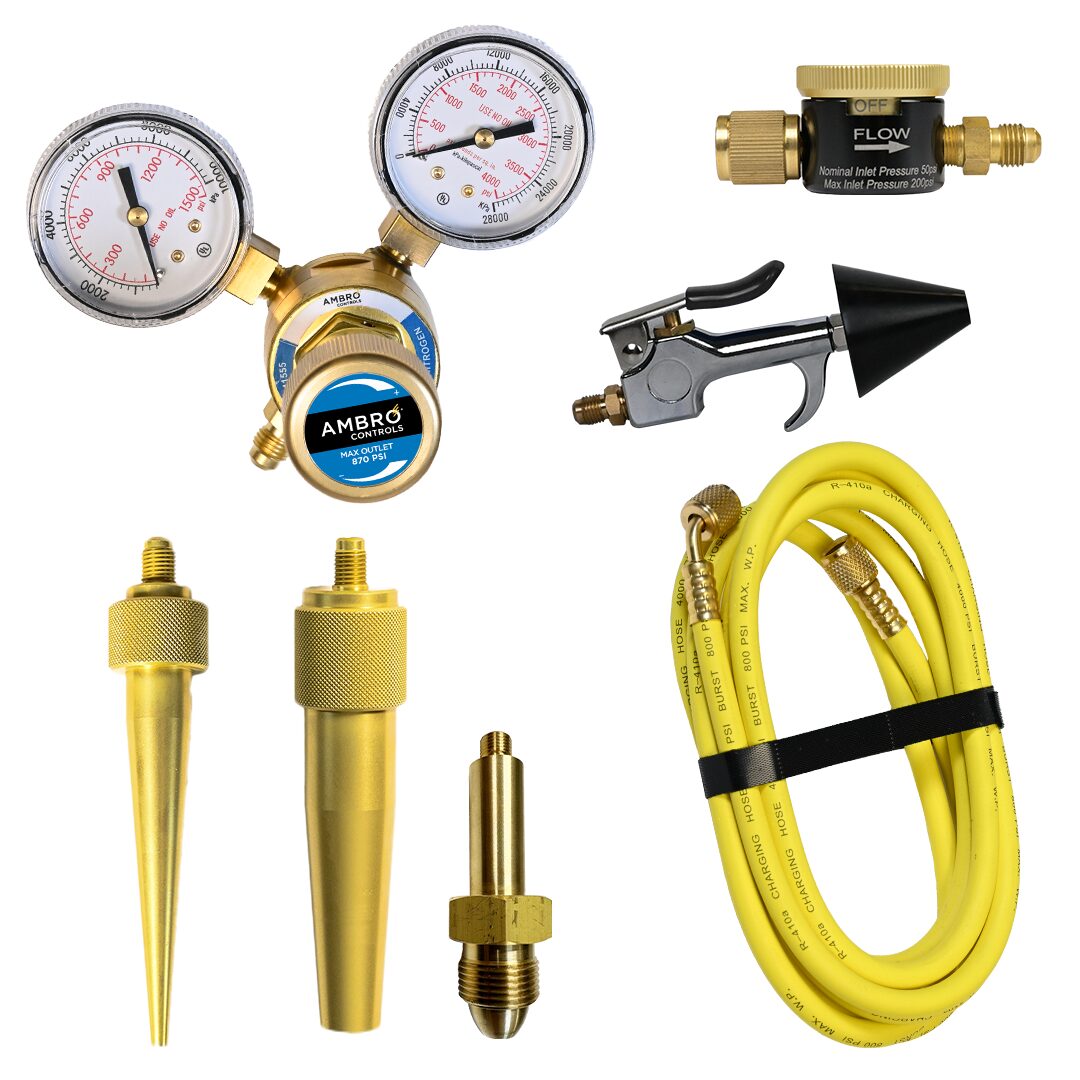

Kit inclusions	870 PSI Regulator (UL approved) 9.84ft (3m) hose with 1/4” SAE fittings 2 x Brass tips – allows purging & testing of 3/8” to 1 1/8” piping M10x1 to CGA580 extended refillable adaptor Contractor-grade carry case with foam insert Nitrogen Blowout Gun Nitrogen Flow Regulator Nitrogen cylinder sold seperately.
Net Weight	9.65lbs – including Adaptor
Case Dimensions	21.3” W x 14.3” H x 5.5” D
MAP (Minimum Advertised Price)	$236.00

Nitrogen purging solution based around disposable cylinders
Lightweight & ultra-portable
For flushing, purging and testing pipes up to 1 1/8 inch
Suitable for drain cleaning
All in one contractor case
Durable regulator range with contents & flow gauges
Compatible with the Ambro Controls 1.9L Nitrogen Cylinder. Can also be connected to standard refillable cylinders with a CGA580 connection (using adapter included)
