Power Torch

The Power Torch is the largest torch in the Oxyset range. A robust tool engineered for heavy-duty brazing. Designed to handle pipes up to 3 inches in diameter, this powerful torch ensures precise, high-temperature flame control for larger-scale HVACR projects. Built for durability and performance and designed for use with the Oxyset Mobile Brazing System, the Power Torch offers portability for professionals seeking to braze tougher jobs with ease.

Application: Heating, Soldering, Brazing, Cutting on larger diameter pipes up to 3”
Part Number (SKU): 1811169

SKU 1811169
Application Heating, Soldering, Brazing, Cutting on larger diameter pipes up to 3”
Barcode 9320688425522
Fuel Type Designed for use with MAP Pro and Oxygen, as part of the Oxyset Mobile Brazing System (sold separately)
Hose Connection

CGA20 for connection to oxygen hose

CGA21 for connection to gas hose

Connects to Oxyset Mobile Brazing System (sold separately)

Oxygen Pressure

Minimum 60 PSI

Maximum 90 PSI

Fuel Gas Pressure

Minimum 10 PSI

Maximum 14 PSI

Torch Dimensions

14” Long (tip to hose)

Tip Sizes 1, 3 and Rosebud
Net Weight 1.2lbs
Box Includes 14” torch, 3 interchangeable tips, 2 check valves
Max. Flame Temperature ~5400°F (2982°C)
  • Powerful flame for brazing up to 3” pipe.
  • Engineered to increase flow rate for larger flame capacity.
  • Comes with 3 interchangeable tips for precise flame control.
  • 14” long torch handle.
  • Built in gas and oxygen controls.
  • Durable torch construction.
  • Designed for HVAC and Plumbing contractors.
  • Compact, lightweight & ultra-portable.
  • Quiet operation.
  • Includes check valves.
  • For use with Oxyset Mobile Brazing System.
  • Use with 1.9L Ambro Controls Oxygen cylinder for extended use.

PROP.65 Warning for California Residents:
The fume produced from using this product can expose you to chemicals, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov

The Oxyset Pro torch, with provided tips, reaches an approximate maximum at the 1.5″ pipe size. This is due the size of the flame being smaller when the user keeps the connection hot enough to braze. To achieve a larger flame size we need to allow for a larger flow rate and have a larger tip, this is delivered with the Power torch.

We recommend presetting regulators’ output pressure to minimum 10 psi for gas pressure regulator; and 60 psi for oxygen pressure regulator. The maximum working pressure should NEVER exceed 14 psi for gas pressure regulator; and 90 psi for oxygen pressure regulator.

RELATED PRODUCTS

Ambro Controls Website - Brazing - 1000 x 600-min

BRAZING & SOLDERING

OXYSET MOBILE BRAZING KIT

1811161 Precision Torch for Brazing & Welding

BRAZING & SOLDERING

PRECISION TORCH

Ambro Controls 1L Oxygen Cylinder (1811323) on table

GAS

1l OXYGEN CYLINDER

Ambro Controls - Featured Image (1000 x 600 px) (1)

GAS

1.9l OXYGEN CYLINDER

ambro controls - map pro - featured image

GAS

MAP-PRO CYLINDER, 14.1oz

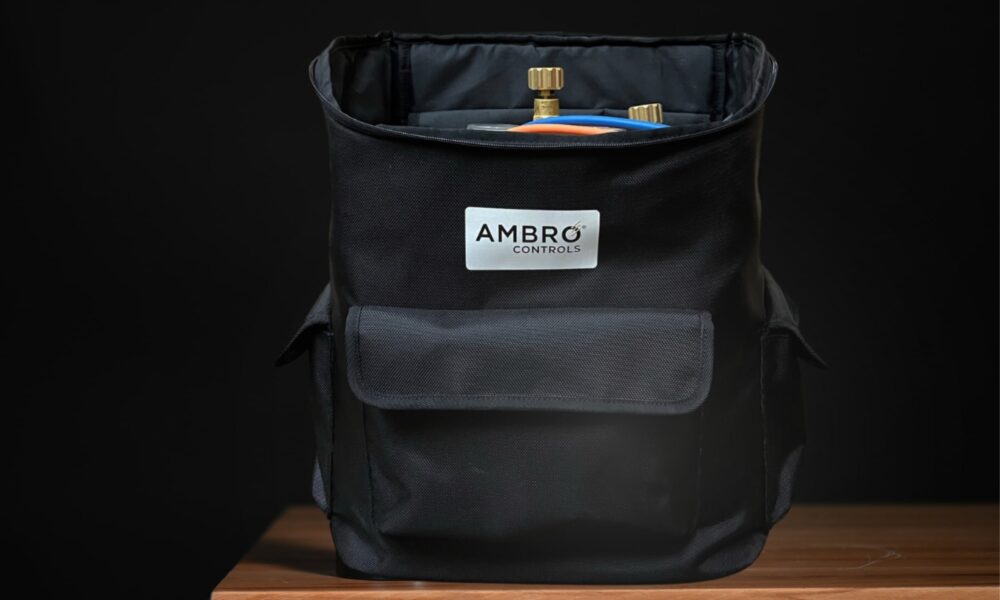

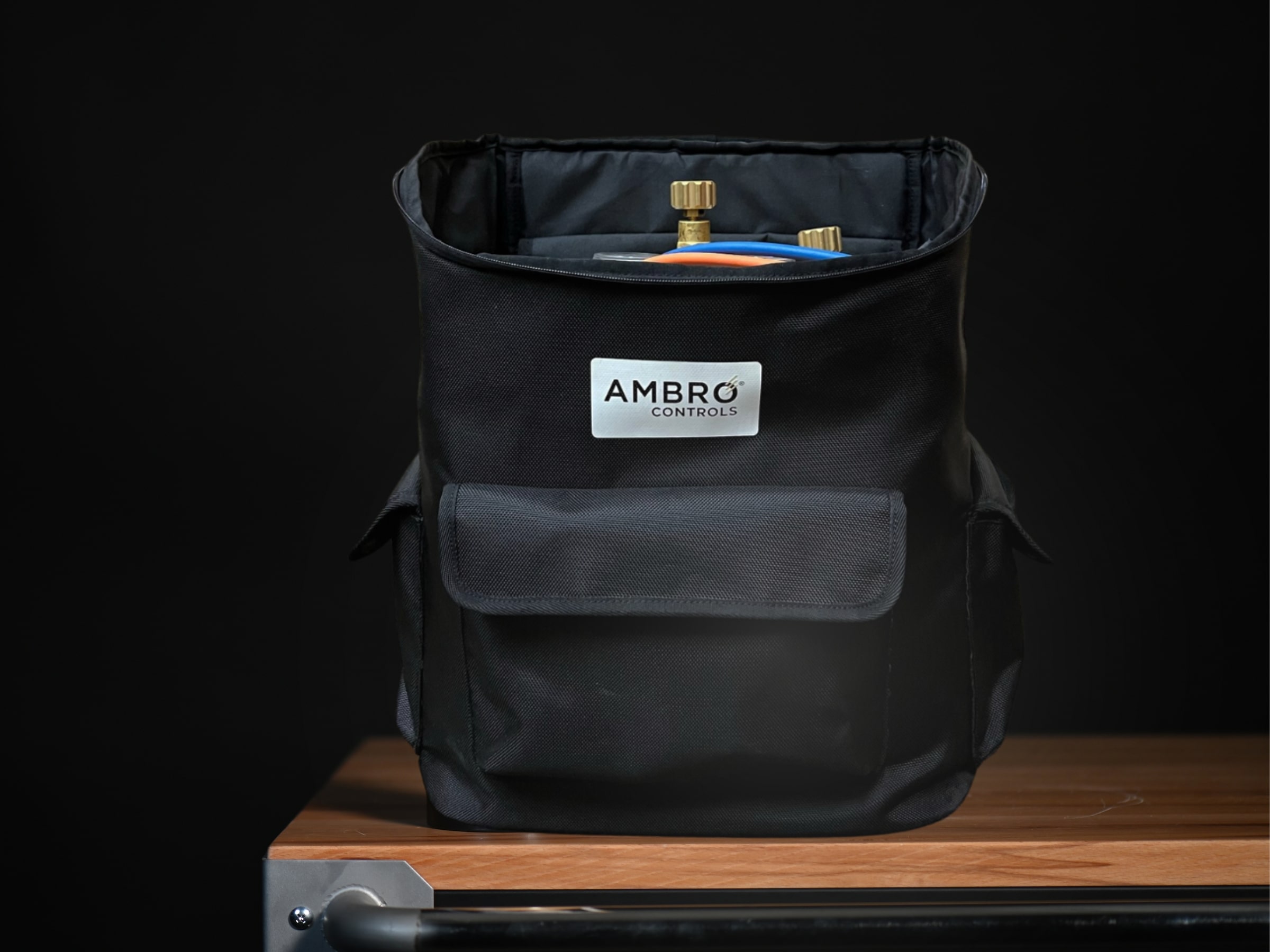

Ambro Controls Oxyset Backpack (1811900) on table
