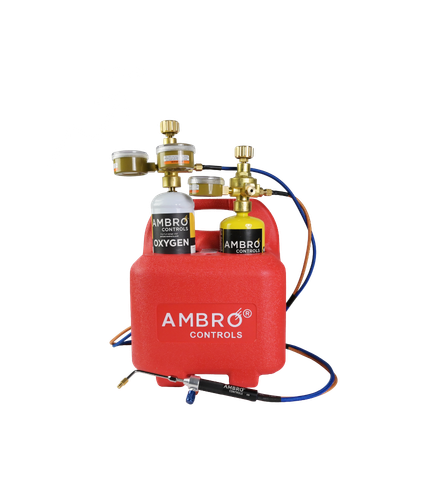

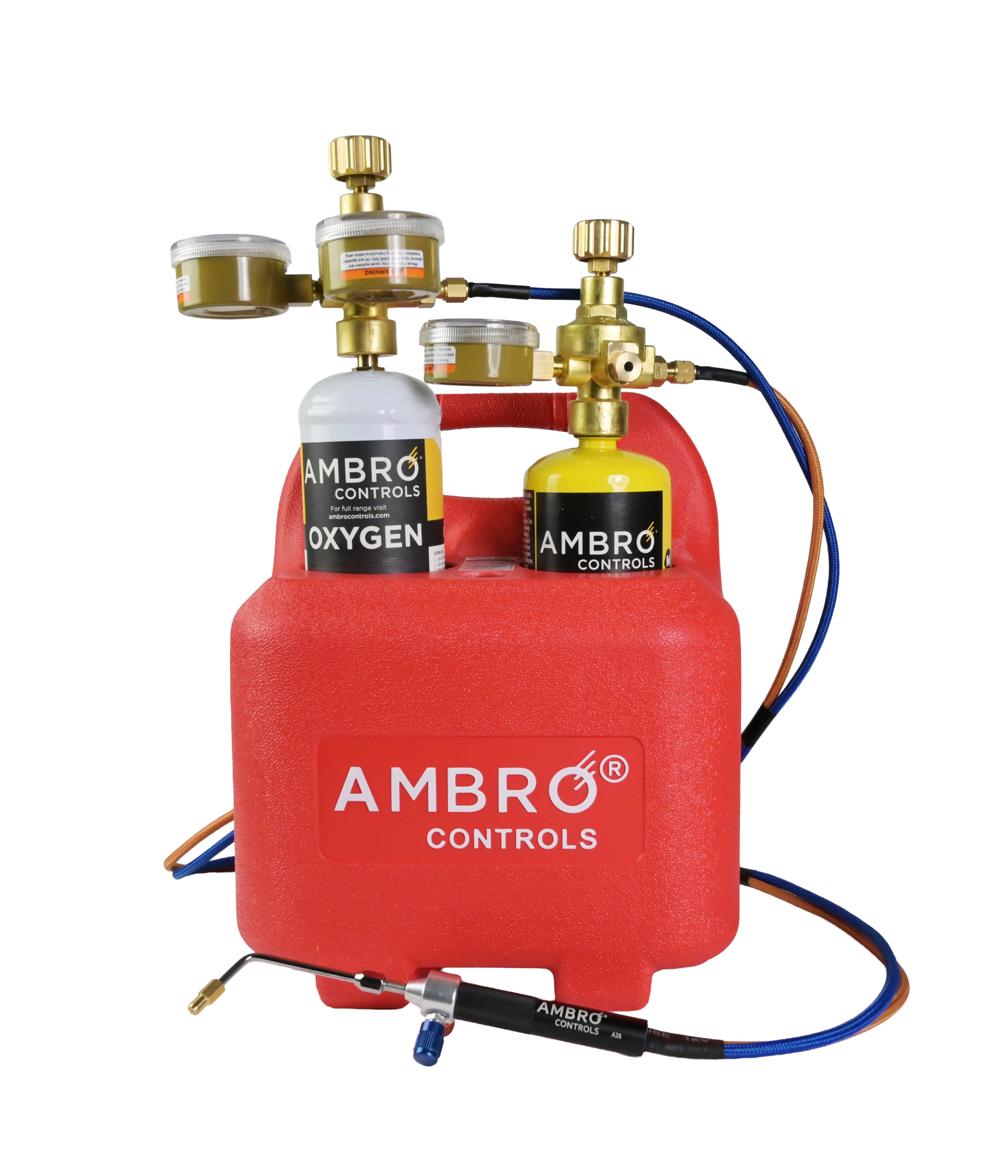

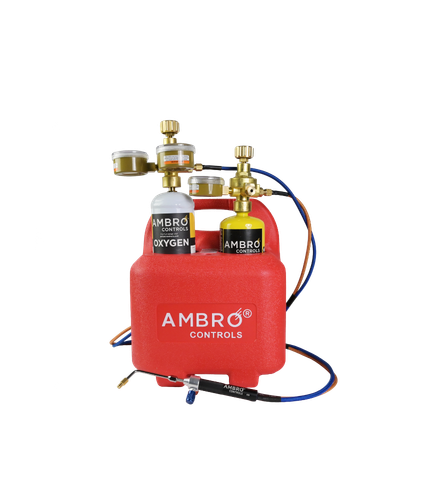

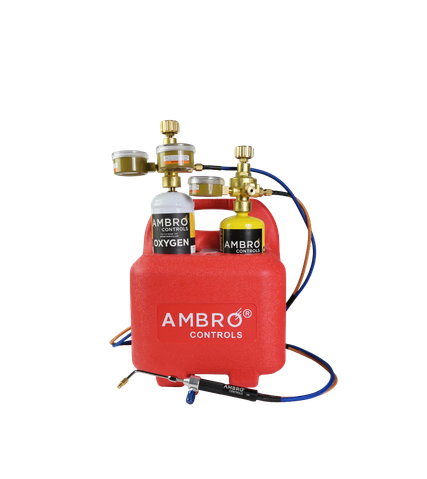

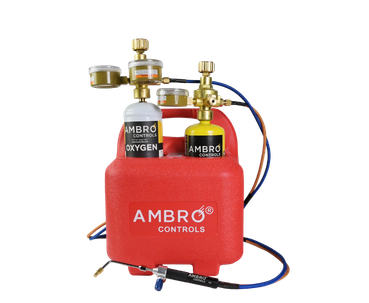

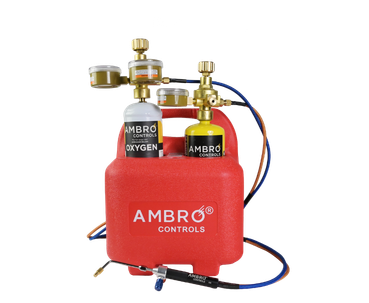

The Oxy Precision Kit is a portable welding & brazing system designed for precise repair jobs in hard to work spaces. Powered by disposable oxygen and map-pro cylinders, the kit comes with the signature Ambro easy-to-carry caddy. The included Precision torch with flexible twin hose assembly is ideal for pinpoint accuracy in any HVAC/R repair including aluminum microchannel.
Powered by a mixture of oxygen and map-pro the Oxy Precision kit is ideal in many applications due to its adjustable heat output including: welding, brazing, silver soldering, aluminum repair and heating. The Oxy Precision kit includes: Ambro Precision Torch, Oxygen regulator with contents & pressure out gauge, MAP-ProTM regulator with outlet gauge, 2 x Nozzles, Flint sparker, Spanner and 6.5ft flexible twin hose assembly.
Use with the Ambro Controls 1L or 1.9L Oxygen Disposable Cylinder and 400g MAP-Pro Cylinder. (Not included in the kit).
Application: Soldering, Brazing, Welding, Cutting, Heating
Part Number (SKU): 1811160
MAP (Minimum Advertised Price): $399.00

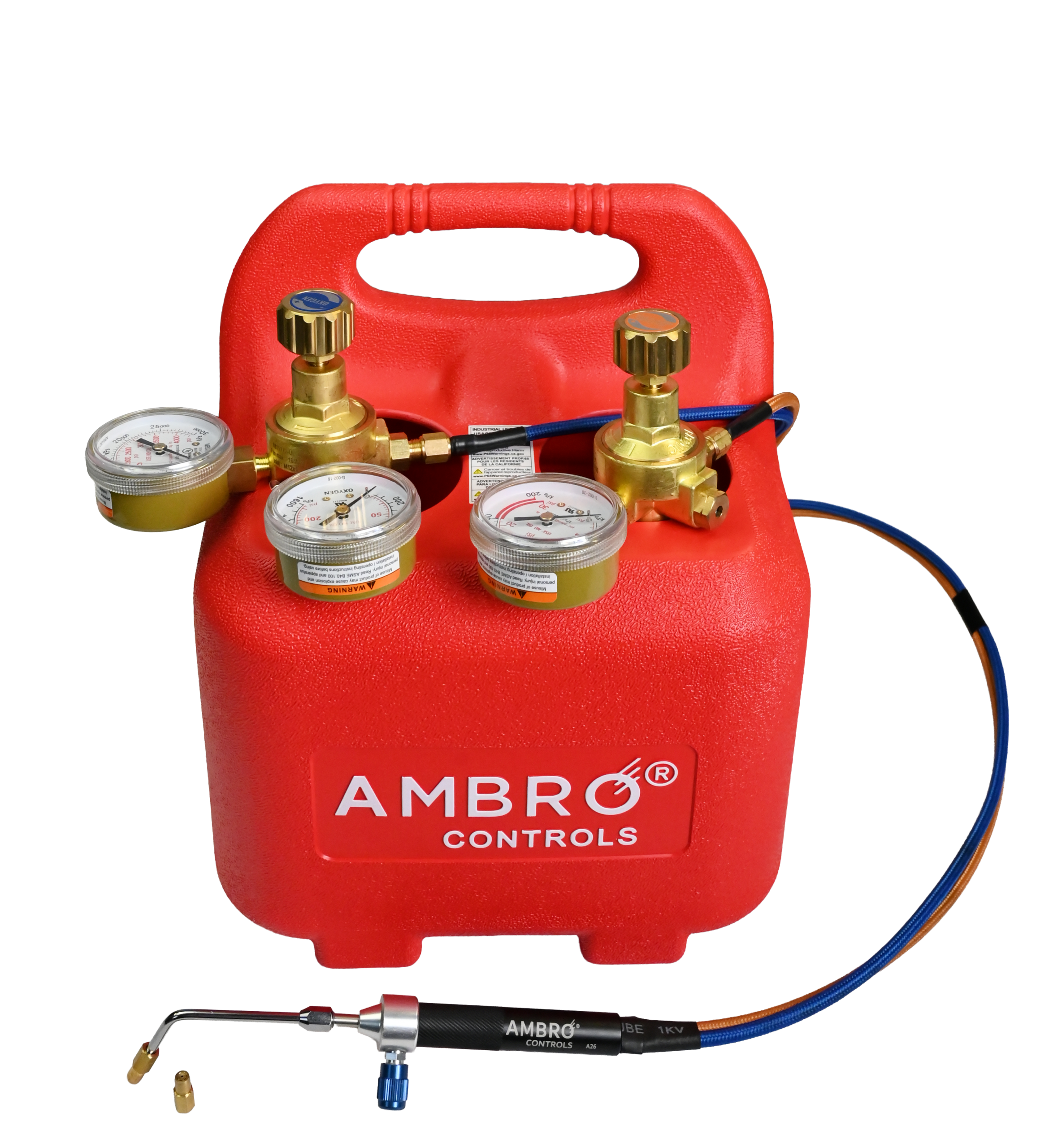

*Map-Pro and Oxygen Cylinders shown for display purposes. Not included with kit.
| SKU | 1811160 |
| Application | Soldering, Brazing, Welding, Cutting, Heating |
| Barcode |
9320688427205 |
| Fuel Type | Ambro Controls 1L Oxygen Disposable Cylinder and 400g MAP-Pro Cylinder. |
| Flame Adjustment | Yes |
| Continuous Flame Lock | No |
| Flame temperature Air | up to ~3000°C |

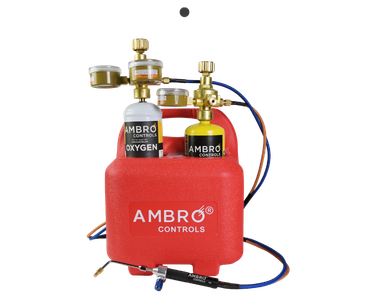

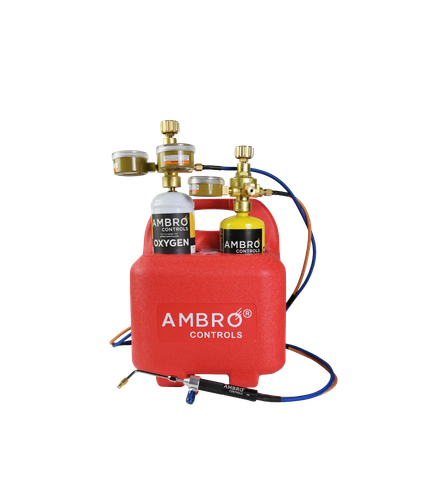

| Net Weight | 70.5oz (2kg) |

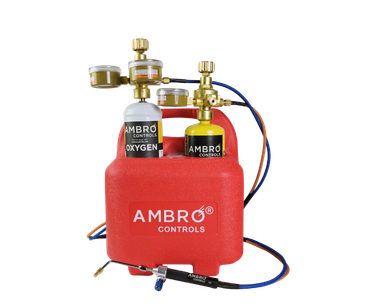

| Dimensions | 17” (43cm) H x 10” (25cm) W x 7” (18cm) D |
| Kit Includes | 1 x Blue oxygen regulator with 2 gauges (inlet thread is M12x1, outlet thread is CGA20), 1 x Orange MAP//Pro (Propylene) regulator with 1 gauge (inlet thread is CGA600, outlet thread is CGA21), 1 x Precision torch with 6.5ft twin hose assembly, 2 x Welding tips 0.037” (0.95 mm), and 0.063” (1.6 mm), 1 x Fitting wrench, 1 x Flint sparker, 1 x Cylinder rack, 3 x Spare O-rings (ID .301”, OD .441”, Thickness .070”) for oxygen regulator inlet |
| Indicative Application Range for Precision Torch | Oxygen Pressure – 29PSI Fuel Gas Pressure – 4.5 – 7.2 PSI Welding Range: Tip #1: 0.0591 – 0.0787 inch, Tip #2: 0.0787 – 0.0984 inch, Tip #3: 0.0984 – 0.118 inch, Tip#4: 0.118 – 0.1376 inch * Note: This kit only comes with Tip #1 and Tip #4 |
| MAP (Minimum Advertised Price) | $399.00 |
| Warranty | 1 Year |
The temperature of the flame is about ~5400°F (3000°C), but this depends on the ratio of oxygen to fuel when burning.
Map-Pro has a working pressure of 0.5-0.9 bar. Oxygen has a working pressure of 4-6 bar.
This kit replaces the original Pro Torch with our popular Precision Torch. The new Oxy Precision Kit comes with the precision torch with twin hose assembly and 2 tips #3 #6. This new kit does not come with check valves, as they are not needed when connecting the precision torch hoses to the regulators.
While some stores may still have stock, the Oxyset has been discontinued and replaced by the two new kits: Oxy Precision Kit and OxyMax Kit.
PROP.65 Warning for California Residents:
The fume produced from using this product can expose you to chemicals, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
