OxyMax Kit

The OxyMax Kit is the complete portable commercial HVACR kit for soldering, brazing, welding, cutting and heating on-the-go. The larger lightweight caddy features a rear pocket for extra storage, a torch holder to fit the included Precision, Pro and Power torch handles as well as an adaptor ring to allow brazing with either the 1L or 1.9L Ambro Oxygen cylinders (sold separately). Ambro Controls HVACR systems are engineered for use with our range of disposable gas cylinders. Our largest set, the OxyMax, enables brazing on pipes from 1/8” to 3” in size, making it the all-in-one solution for highly mobile tradespeople or for working in hard-to-reach areas.

A mixture between oxygen and gas fuel is ideal in many applications due to its adjustable heat output, this kit is suitable for a variety of applications including: welding, brazing, silver soldering, aluminium coil repair and more. The OxyMax Kit includes the following items: (see list below).

Use with the Ambro Controls 1L or 1.9L Oxygen Disposable Cylinder and 14.1oz MAP-Pro Cylinder. (Not included in the kit).

Application: Commercial HVACR: Soldering, Brazing, Welding, Cutting, Heating
Part Number (SKU): 1811170
MAP (Minimum Advertised Price): $649.00

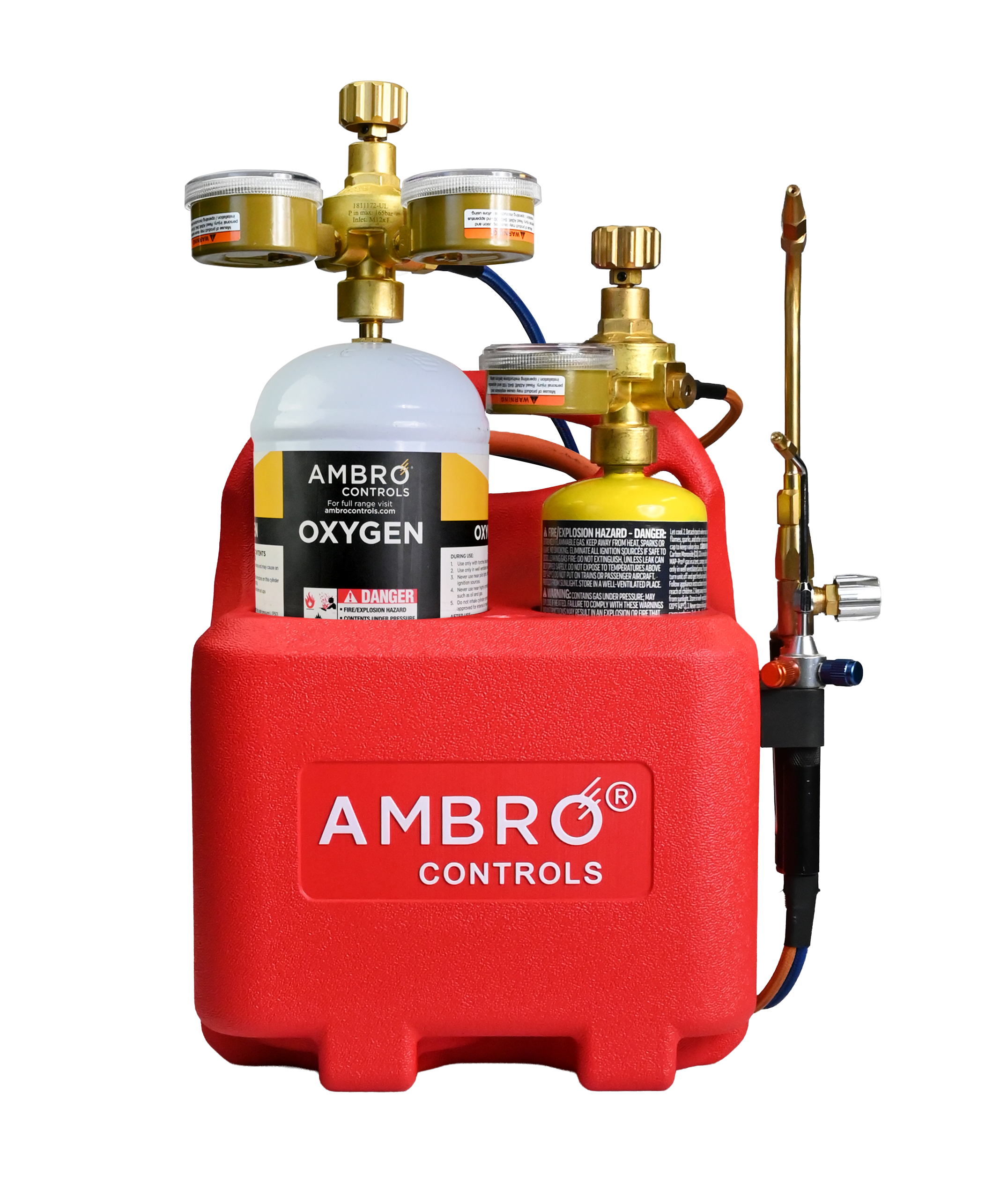

*Map-Pro and Oxygen Cylinders shown for display purposes. Not included with kit.

SKU	1811170
Barcode	9320688427212
Application	Commercial HVACR: Soldering, Brazing, Welding, Cutting, Heating
Fuel Type	Ambro Controls 1L and 1.9L Oxygen Disposable Cylinder and 14.1oz (400g) MAP-Pro Cylinder
Torches Included	1 x Precision Torch with 6.5ft twin hose assembly w/ 4 tips, 0.037” (0.95 mm), 0.047” (1.2 mm), 0.053” (1.35 mm), 0.063” (1.6 mm). 1 x Pro Torch w/ 2 tips 0.0787 (2.0mm), 0.0945” (2.4mm) and a rosebud tip 0.0472” (1.2mm) 1 x Power Torch w/ 2 tips 0.028” (0.7mm), 0.035” (0.9mm) and a rosebud tip 0.0472” (1.2mm)
Hose Connection	Blue Oxygen Hose – (6.5ft length, 1/8” ID, CGA20) Orange Gas Hose – (6.5ft length, 1/8” ID, CGA21)*6.5ft twin hose assembly included with Precision Torch
Regulator Connection	1x Blue oxygen regulator: Inlet (M12x1) Outlet (CGA20) 1 x Orange gas regulator: Inlet (CGA600) Outlet (CGA21)
Flame temperature Air	up to ~5432°F (3000°C)
Net Weight	150 oz (4.25kg)
Weight	1L Oxygen: 169 oz (4.8kg) 1.9L Oxygen: 175oz (4.95kg) (11lbs) Based on assembled caddy with 1.9L Oxygen and MAP 14.1 oz (400g)
Included in Box	Precision troch w/ 6.5ft twin hose & 4 tips, Pro torch with 2 tips and Rosebud, Power torch w. 2 tips & rosebud, 2 check valves (torch end), oxygen regulator, fuel gas regulator, 6.5ft twin hose assembly, flint sparker, spanner, 3 spare o-rings, and caddy w/ oxygen cylinder adaptor ring.
MAP (Minimum Advertised Price)	$649.00

Delivers maximum portability for brazing in commercial HVACR
Compact, portable, lightweight & multi-functional caddy
Comes with 3 torch sizes: Precision, Pro and Power
Enables brazing on pipes from 1/8” up to 3” in size
Suitable for use with 14.1oz MAP-Pro & 1L or 1.9L Oxygen cylinders, sold separately
Fits 1L & larger 1.9L Ambro Oxygen cylinders (adaptor ring included)

What is the flame temperature?

The temperature of the flame is about 3200 degrees Celsius, but this depends on the ratio of oxygen to fuel when burning.

What is the working pressure for each gas?

Map-Pro has a working pressure of 0.5-0.9 bar. Oxygen has a working pressure of 4-6 bar.

How to clip in the torches on the OxyMax Kit?

Here is video showing How to Properly Mount and Remove Torches on the OxyMax Kit
Instructions for each torch as are follows:

PRECISION TORCH. To remove the precision torch lift the torch by the handle and pull straight up to release from the holder. To return the precision torch to the holder insert the bottom of the torch into the top opening of the holder, then move the torch straight down until it reaches the locked position.
PRO TORCH. To remove the pro torch confirm the torch is locked in the holder with the oxygen valve in the locked position. Move the torch straight up then twist it COUNTERCLOCKWISE to release it from the holder. To return the torch, while holding the torch at an angle, insert the torch handle into the holder, securing the left side first. ROTATE the handle to PRESS the right side of the handle into the holder, ensuring it is fully seated. Slide the torch down until the oxygen valve sits comfortably into the locked position.
POWER TORCH. To remove the torch ensure the torch is locked in the holder with the oxygen valve seated in the locked position. Move the torch straight up, then twist it 90° COUNTERCLOCKWISE, so the fuel valve faces to the right. Continue moving the torch upward to fully remove it from the holder. To return the torch to the holder, while holding the torch with the fuel valve facing to the right, insert the bottom of the torch into the top opening of the holder. Move the torch straight down while twisting it 90° CLOCKWISE. Push the torch further into the holder, until the oxygen valve sits comfortably in the locked position.

Can I still get the Oxyset?

While some stores may still have stock, the Oxyset has been discontinued and replaced by the two new kits: Oxy Precision Kit and OxyMax Kit.

PROP.65 Warning for California Residents:
The fume produced from using this product can expose you to chemicals, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
