400PSI Nitrogen Purging Kit

Test and purge refrigeration and air conditioning systems easily with our Nitrogen Purging Kit. Pressure check HVAC and Refrigeration lines, and purge pipes prior to brazing to protect the joints from oxidation. This kit can also be used to flush condensate drain lines. The compact size is suitable for use in hard to reach areas or where space is limited.

Available in 3 pressure variants, these nitrogen purging kits include UL Approved regulators, with easy-to-read contents and flow gauges that have been precision engineered for trade use.

Application: Engineered for HVAC technicians for purging & testing of HVAC and refrigeration systems

*Nitrogen Cylinder shown for display purposes. Not included with kit.

SKU 1811556
Application Testing and purging of refrigeration and air conditioning systems. Flushing condensate drain lines.
Delivery Range 0-400 PSI
Max. Inlet Pressure  3000 PSI
Hose Connection  ¼” SAE Fittings
Hose length 9.84ft (3m)
Compatible Pipe Diameter 3/8” to 1 1/8”

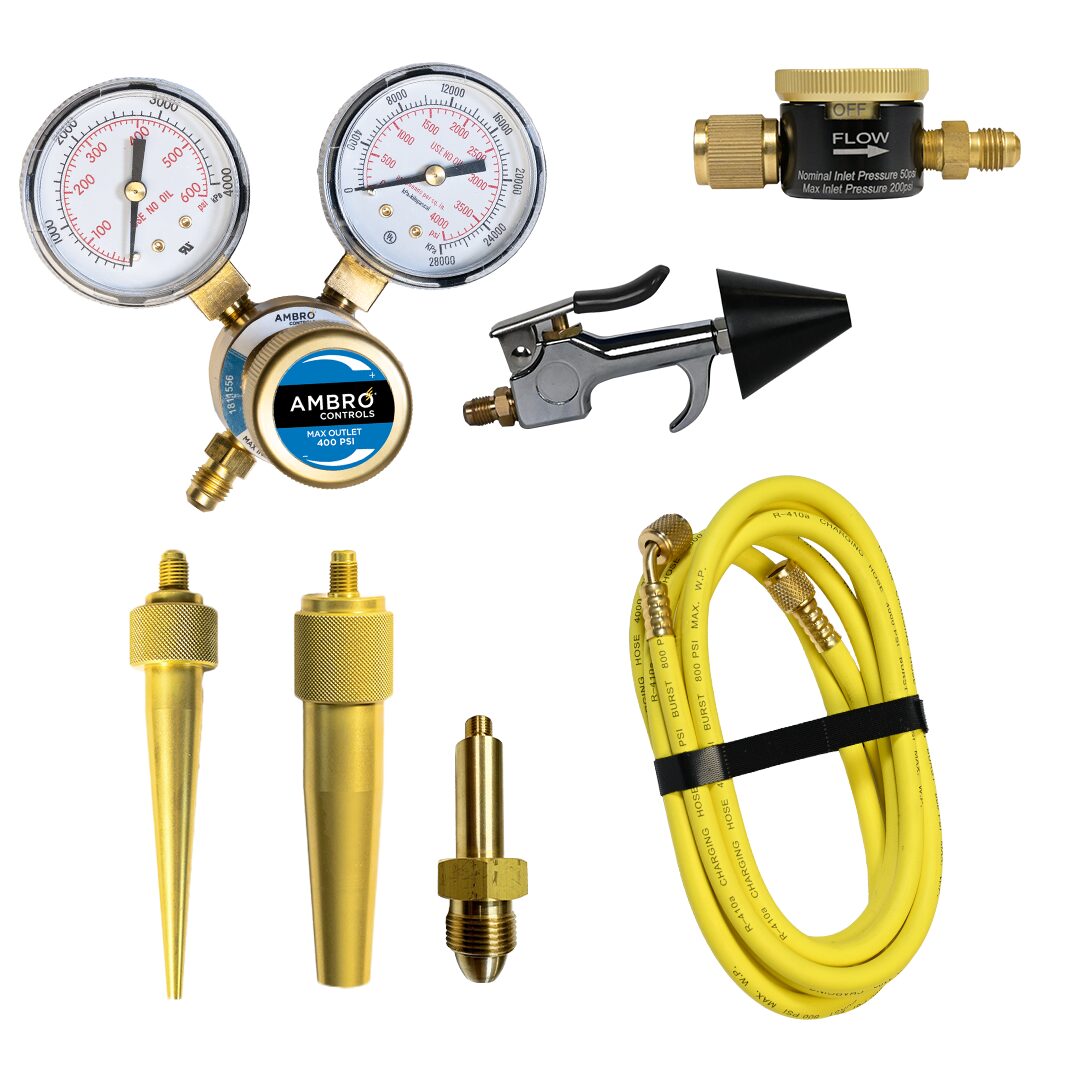

Kit inclusions
  • 400 PSI Regulator (UL approved)
  • 9.84ft (3m) hose with 1/4” SAE fittings
  • 2 x Brass tips – allows purging & testing of 3/8” to 1 1/8” piping
  • M10x1 to CGA580 Cylinder adaptor

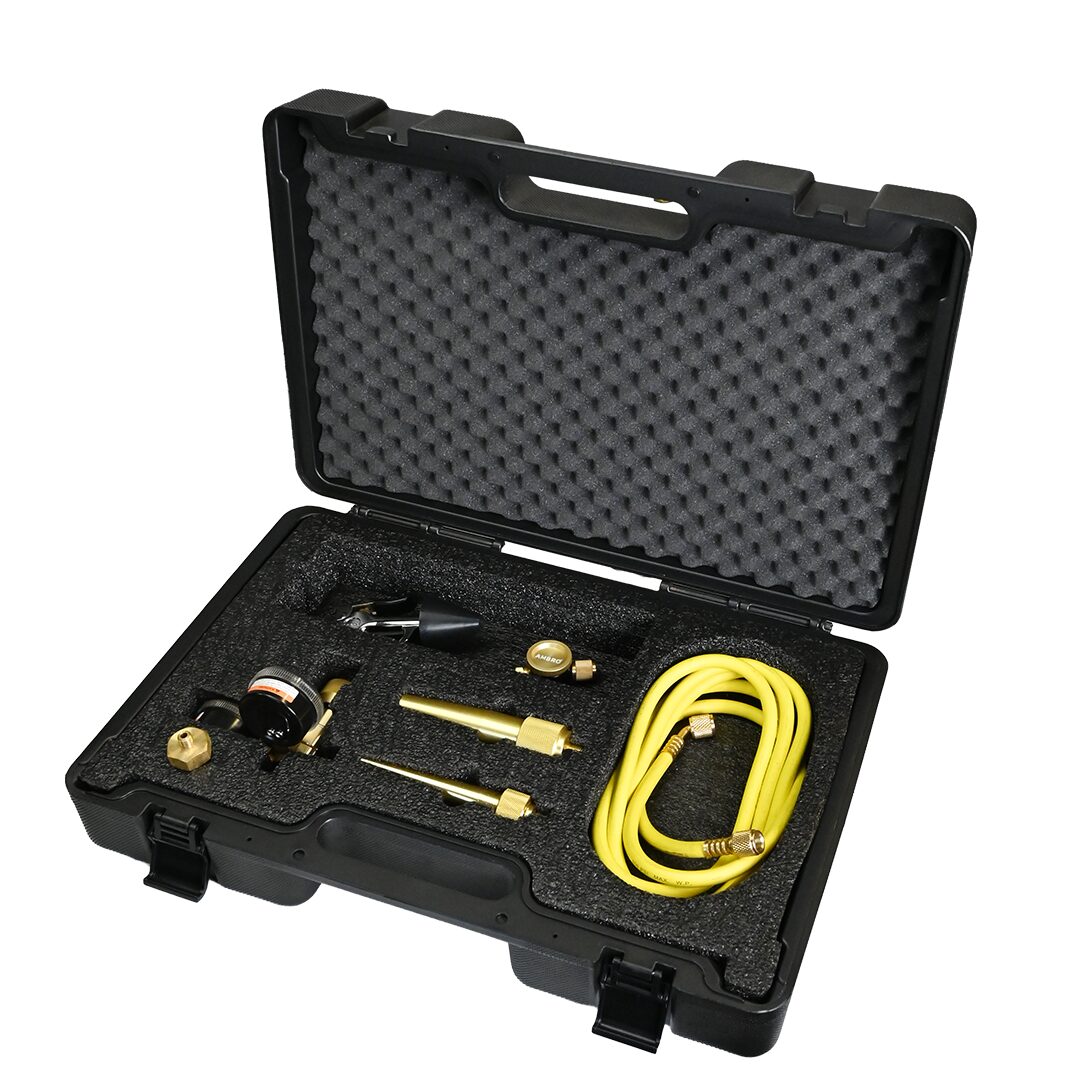

  • Contractor-grade carry case with foam insert

Nitrogen cylinder sold separately.
Net Weight 9.52lbs (4.32kg)
Case Dimensions 21.3” W x 14.3” H x 5.5” D
  • Nitrogen purging solution based around disposable cylinders
  • Lightweight & ultra-portable
  • For purging pipes up to 1 1/8 inch
  • All in one contractor case
  • Durable regulator range with contents & flow gauge

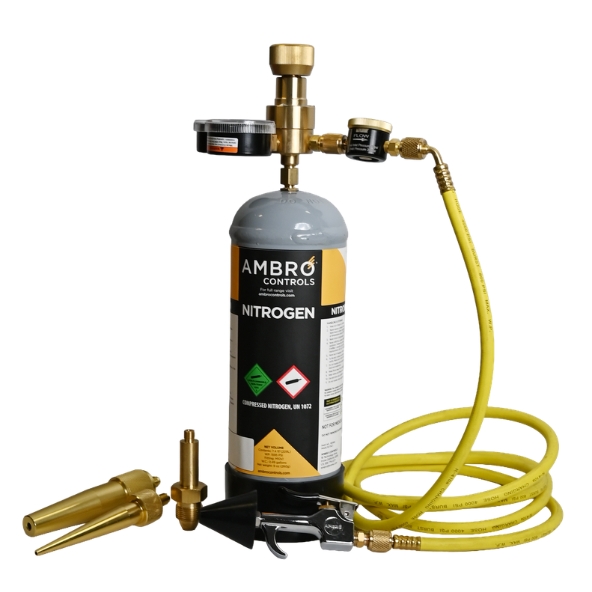

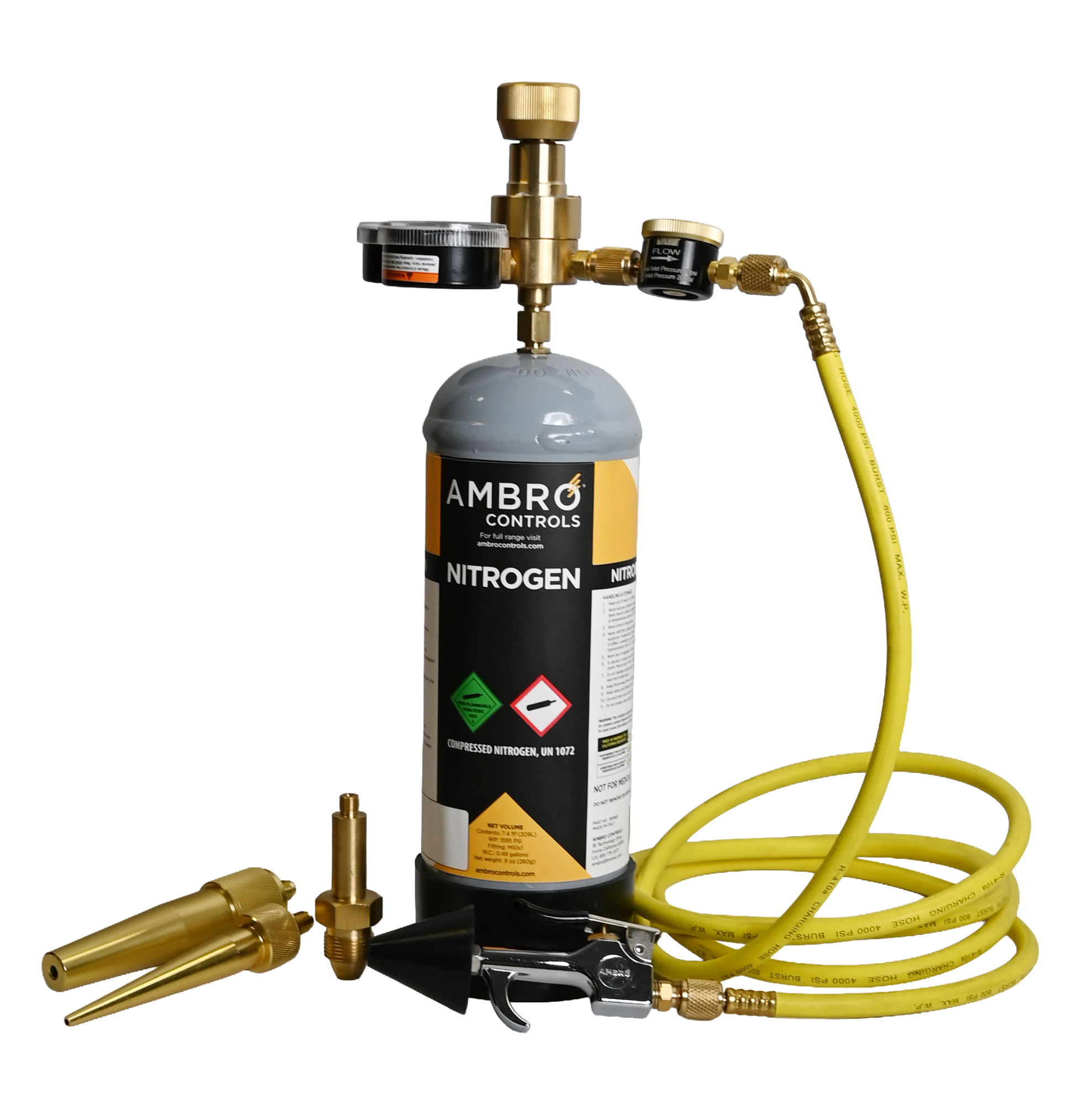

  • Compatible with the Ambro Controls 1.9L Nitrogen Cylinder. Can also be connected to standard refillable cylinders with a CGA580 connection (using adaptor included)

RELATED PRODUCTS

PURGING & TESTING / GAS

1.9L Nitrogen Cylinder

PURGING & TESTING

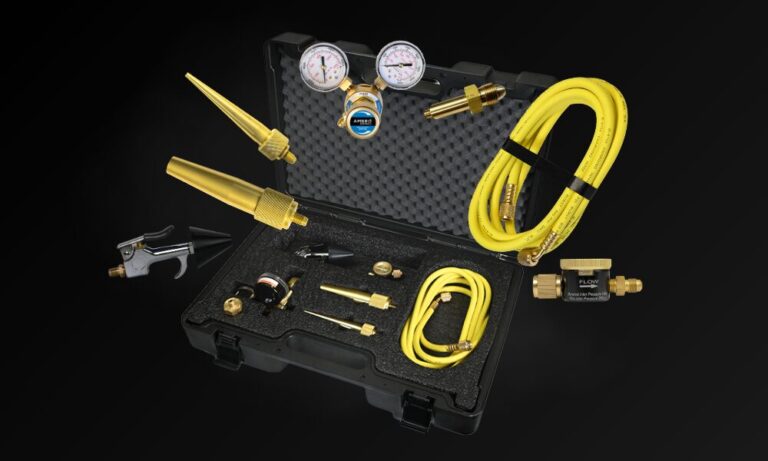

870PSI Nitrogen Purging Kit

PURGING & TESTING

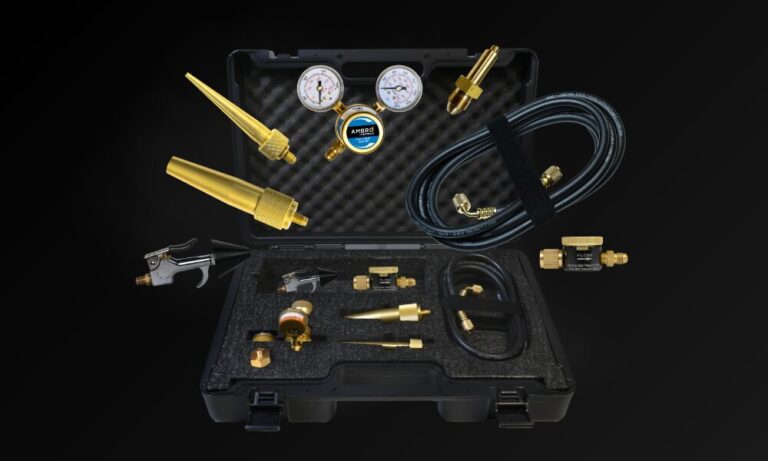

200PSI Nitrogen Purging Kit
